Air Sensor Comparison Table
Altruist is two devices working as one. Urban goes outside and measures what the street does to your air: PM2.5 and PM10, temperature, humidity, pressure and noise in decibels. Insight stays in the room and measures what you actually breathe: CO2 through an NDIR sensor, shown on an e-ink screen you can read from across the table.
- Open from the firmware up. The firmware, the schematics and the open source cloud it talks to are all public. You can read the code, change it, and build on it.
- Works on its own. Local control over your own network, a native Home Assistant integration and a microSD card for history. The device keeps measuring and showing data with no internet connection at all.
- Your data, your call. Publish your measurements to the open source cloud and they join a public map, or keep everything inside your own network.
Here is how Altruist measures up, feature by feature.
| Model | Altruist Urban | Altruist Dual | AirVisual Pro & Outdoor | AirGradient Indoor & Outdoor | PurpleAir Zen | Netatmo Weather Station |
|---|---|---|---|---|---|---|

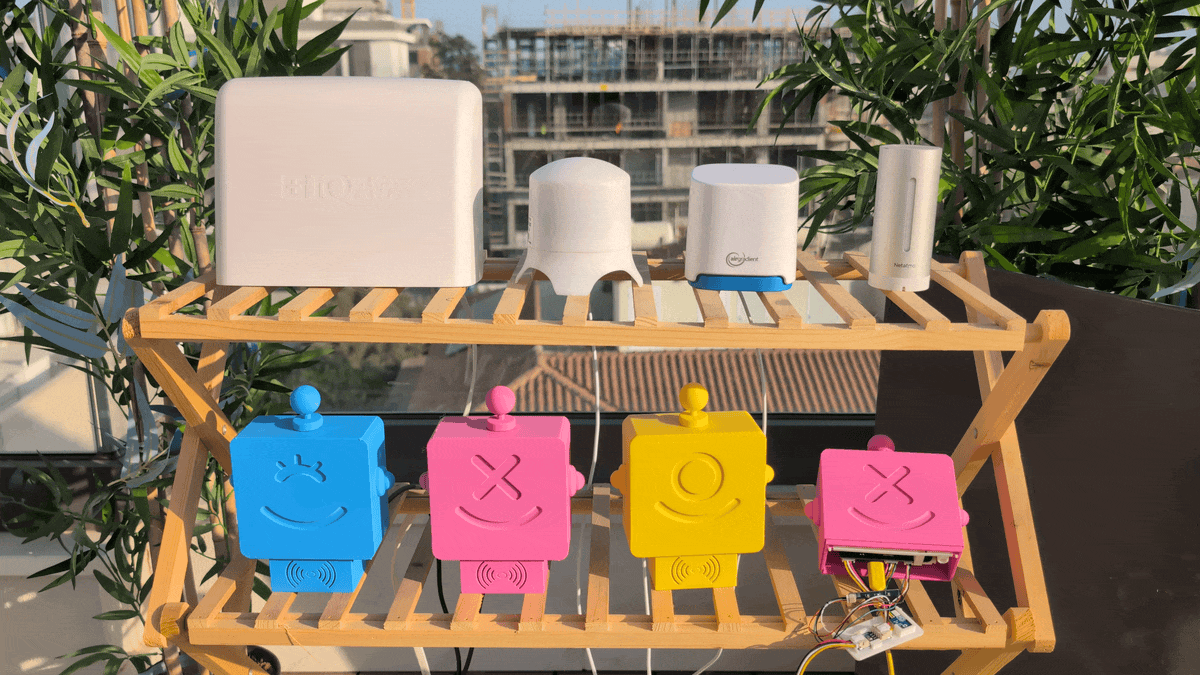

| Photo |  | |  |  |  |  |
| Price | €210 ($244) | €360 ($418) | €542 ($630) | €392 ($455) | €257 ($299) | €150 ($174) |
| Type | Single outdoor module | Dual-module, outdoor and indoor | Two separate modules | Two separate modules | Can be outdoor or indoor | Dual-module, outdoor and indoor |
| Particle Sensor | Yes | Yes | Yes | Yes | Yes | No |
| Urban Noise Sensor | Yes | Yes | No | No | No | Only indoor |
| Indoor CO2 | No | Yes | Yes | Yes | No | Yes |
| User Interface on Device | LED indication | LED indication on Urban + E-ink screen on Insight | LED indication on Outdoor and LCD screen on Pro | LED indication and small screen on Indoor | Only LED strip | Only LED strip |
| microSD Support | Yes | Yes | No | No | Yes | No |
| Power Connector | USB Type-C | USB Type-C | Micro USB on Pro & Ethernet PoE on Outdoor | USB Type-C | Micro USB | Micro USB |
| Housing | 3D printed, different colors and icons | 3D printed, different colors and icons | Only one color available | Only one color available | Only one color available | Only one color available |
| Water Protection | Fully sealed housing, air supply tube | Fully sealed housing, air supply tube | Fully sealed housing | Fully sealed housing | Unprotected open bottom of the sensor | Fully sealed housing |
| UV Protection | Protective shield made of ASA plastic | Protective shield made of ASA plastic | Yes | Housing is made of ASA plastic | Not specified | Not specified |
| Mandatory Cloud Connection | No | No | Yes | No | Yes | Yes |
| Local Device Management via IP | Full control over settings | Full control over settings | No, only in the app | No, but available via Home Assistant | Most functions are not available, settings only via corporate cloud | No, only in the app |
| Online Air Quality Map by Community | Yes, optional | Yes, optional | Yes, optional | Yes, optional | Yes, main entry point to view data | Yes, optional |
| Home Assistant Integration | Yes, only the HA addon is needed | Yes, only the HA addon is needed | Yes, but only for Pro | Yes, only the HA addon is needed | Yes, but limited API and cloud connection are required | Yes, only the HA addon is needed |
| Data Control and Ownership | The user owns the data and controls its distribution | The user owns the data and controls its distribution | Officially owned by users, but they must consent to the company's use of their data | The user owns the data and controls its distribution | The company owns the data, but users can view and export it with some limitations | Officially owned by users, but they must consent to the company's use of their data |
| Open Source and Hardware | Yes | Yes | No | Yes | No | No |
| Custom Firmware and DIY-mods | Yes | Yes | No | Yes | No | No |
